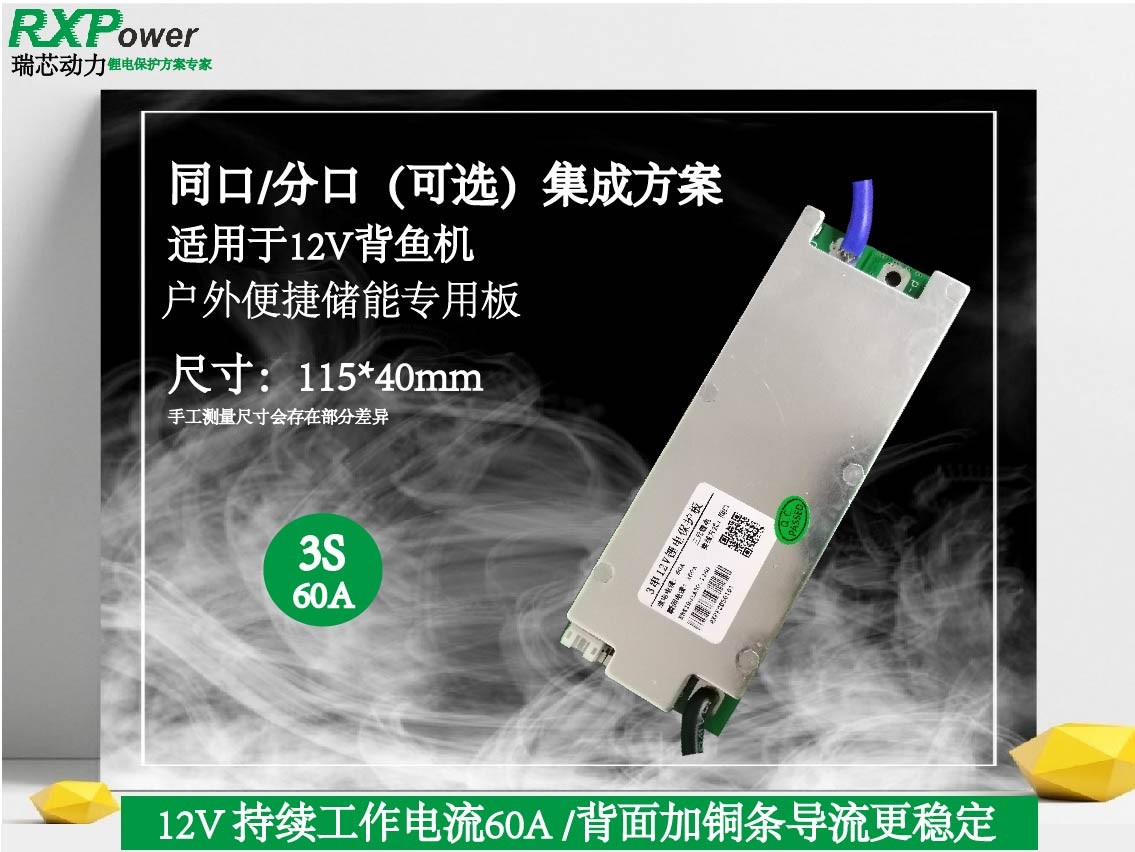

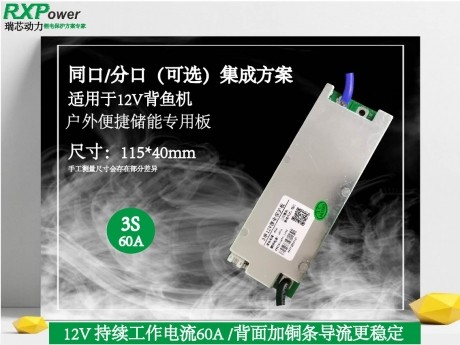

3串12V 60A电鱼机保护板EBK1901A30.1260

Item

项目

Symbol

符号

Content

详细内容

Criterion

标准

Over charge 1^st Protection

过充保护

VCU1

Over charge 1^st detection voltage

1级过充电检测电压

4.25±0.025V

tCU1

Over charge 1^st detection delay time

1级过充电检测延迟时间

1±0.3S

VCL1

Over charge 1^st release voltage
1级过充电解除电压

4.15±0.05V

Over discharge protection

过放保护

VDL

Over discharge detection voltage

过放电检测电压

2.750±0.10V

tDL

Over discharge detection delay time
过放电检测延迟时间

20±6 mS

VDU

Over discharge release voltage
过放电解除电压

3.0±0.10V

1^st Over current protection

一级过流保护

IDIOV1

Over current detection current 1

过电流检测电流 1

不损坏

tDIOV1

Overcurrent detection delay time 1

过电流保护延时1

12±4mS

Short current protection

短路保护

ISHORT

Short circuit detection current

短路保护检测电流

不损坏

tSHORT

Short circuit delay time

短路保护延时

100-600uS

Over current release

过流恢复

/

Over current & short current release

过流及短路保护恢复

Load disconnection

Balance function

平衡功能

VBAL

Balance detection/ release voltage

平衡动作/恢复电压

/

Continue Current

持续工作电流

ICHG

Continue charge current

持续充电电流

Max.60A

IDIS

Continue discharge current

持续放电电流

Max.60A

Internal resistance

保护板内阻

RCHG

Resistance in charge 充电回路内阻

<80 mohm

RDIS

Resistance in discharge 充电回路内阻

<20 mohm

Current consumption

静态功耗

ISTB

Current consume in normal operation

工作时电路内部消耗

<100uA
