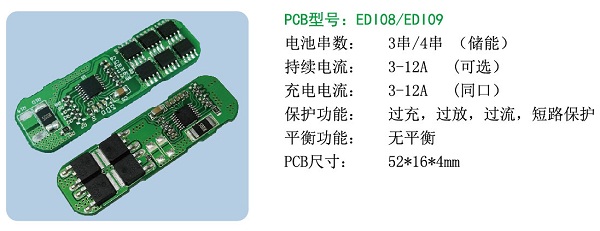

产品综述
EDI08/EDI09 3串/4串储能保护板采用进口锂电保护IC ，提供完善可靠的保护性能：极高的过充/过放电压检测精度；三级放电过流保护检测及延时（过流1/过流2/过流3）；极低静态消耗电流 。
|
Item
项目 |
Symbol
符号 |
Content
详细内容 |
Criterion
标准 |
|
Over charge 1st Protection
过充保护 |
VCU1 |
Over charge 1st detection voltage
1级过充电检测电压 |
4.25±0.025V |
|
tCU1 |
Over charge 1st detection delay time
1级过充电检测延迟时间
|
1±0.3S |
|
|
VCL1 |
Over charge 1st release voltage |
4.15±0.05V |
|
|
Over discharge protection
过放保护 |
VDL |
Over discharge detection voltage
过放电检测电压 |
2.70±0.08V |
|
tDL |
Over discharge detection delay time |
0.10±0.05s |
|
|
VDU |
Over discharge release voltage
|
3.0±0.08V |
|
|
1st Over current protection
一级过流保护 |
IDIOV1 |
Over current detection current 1
过电流检测电流 1 |
40A±5A |
|
tDIOV1 |
Overcurrent detection delay time 1
过电流保护延时1 |
100±5mS |
|
|
2nd Over current protection
二级过流保护 |
IDIOV2 |
Over current detection current 2
过电流检测电流 2 |
100±20A |
|
tDIOV2 |
Overcurrent detection delay time2
过电流保护延时2 |
1±0.5ms |
|
|
3nd Over current protection
三级过流保护 |
IDIOV3 |
Over current detection current 3
过电流检测电流 3 |
240±60A |
|
tDIOV3 |
Overcurrent detection delay time3
过电流保护延时3 |
100-600uS |
|
|
Over current release
过流恢复 |
/ |
Over current & short current release
过流及短路保护恢复 |
Load disconnection |
|
Balance function
平衡功能 |
VBAL |
Balance detection/ release voltage
平衡动作/恢复电压 |
/ |
|
Over Temp protection
过温度保护 |
Temp |
Protect the temperature
保护温度 |
/ |
|
Continue Current
持续工作电流 |
ICHG |
Continue charge current
持续充电电流 |
Max.8A |
|
IDIS |
Continue discharge current
持续放电电流 |
Max.8A |
|
|
Internal resistance
保护板内阻 |
RCHG |
Resistance in charge 充电回路内阻 |
<80 mohm |
|
RDIS |
Resistance in discharge 充电回路内阻 |
<20 mohm |
|
|
Current consumption
静态功耗 |
ISTB |
Current consume in normal operation
工作时电路内部消耗 |
<30uA |

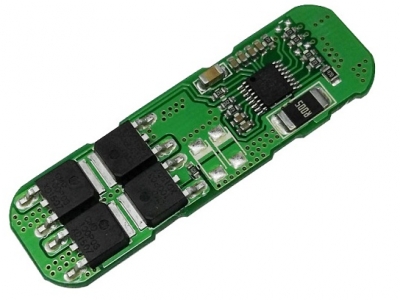

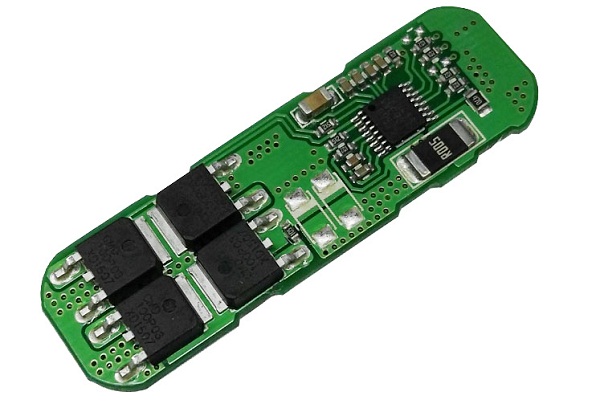

实图展示
