产品综述
3串12V 40A养护性板EBK1803 ,的工作瞬时电流量40A ,运用能量容量电池專用锂电养护性IC ,提供了完美正规的养护性安全性能:最高的过充/过释放压检则乐竞·体育APP下载安装度;三级视频释放过流养护性检则及时间延迟(过流1/过流2/过压);越来越低静态变量损耗瞬时电流量 。计数参数
Item
产品 |
Symbol
符号 |
Content
详细内容 |
Criterion
标准 |
Over charge 1st Protection
过充保护 |
VCU1 |
Over charge 1st detection voltage
1级过充电检测电压 |
4.275±0.025V |
tCU1 |
Over charge 1st detection delay time
1级过充电检测延迟时间
|
1±0.3S |
|
VCL1 |
Over charge 1st release voltage |
4.175±0.05V |
|
Over discharge protection
过放保护 |
VDL |
Over discharge detection voltage
过放电检测电压 |
2.30±0.10V |
tDL |
Over discharge detection delay time |
0.10±0.05s |
|
VDU |
Over discharge release voltage
|
2.4±0.10V |
|
1st Over current protection
特一级过载保护英文 |
IDIOV1 |
Over current detection current 1
过电流检测电流 1 |
160A±15A |
tDIOV1 |
Overcurrent detection delay time 1
过电流保护延时1 |
9±5mS |
|
2nd Over current protection
二级过流保护 |
IDIOV2 |
Over current detection current 2
过电流检测电流 2 |
800±80A |
tDIOV2 |
Overcurrent detection delay time2
过电流保护延时2 |
2±0.5ms |
|
Short current protection
短路保护 |
ISHORT |
Short circuit detection current
短路保护检测电流 |
1920±480A |
tSHORT |
Short circuit delay time
断路维护怎么延时 |
100-600uS |
|
Over current release
过流恢复 |
/ |
Over current & short current release
过流及短路保护恢复 |
Load disconnection |
Balance function
稳定平衡实用功能 |
VBAL |
Balance detection/ release voltage
平衡动作/恢复电压 |
/ |
Continue Current
持续工作电流 |
ICHG |
Continue charge current
不断蓄电电流值 |
Max.5A |
IDIS |
Continue discharge current
持继自放电工作电流 |
Max.40A |
|
Internal resistance
保护板内阻 |
RCHG |
Resistance in charge 充电回路内阻 |
<80 mohm |
RDIS |
Resistance in discharge 充电回路内阻 |
<20 mohm |
|
Current consumption
静态功耗 |
ISTB |
Current consume in normal operation
工作时电路内部消耗 |
<100uA |

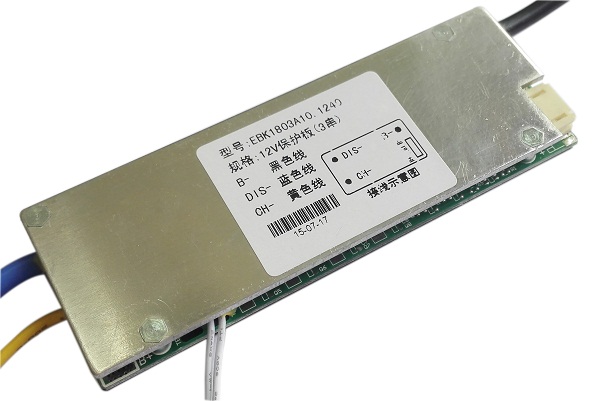

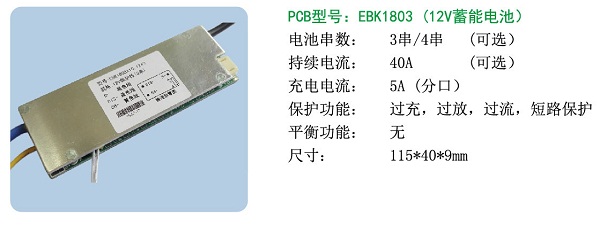

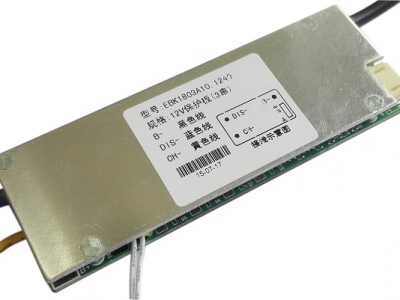

图片简介
